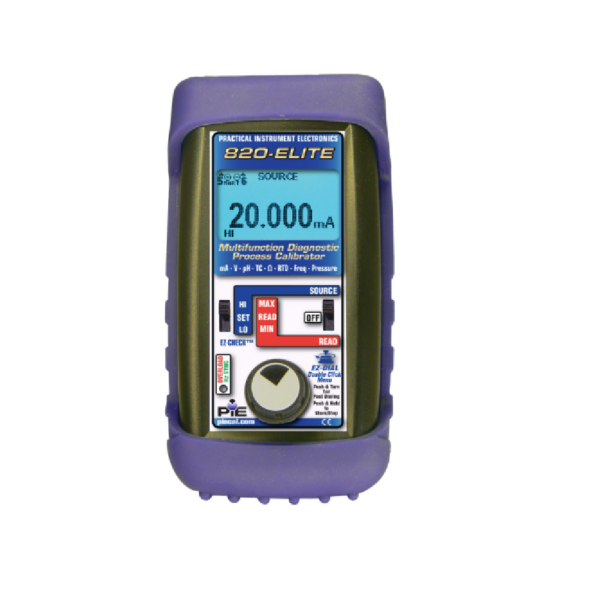

PIE 820Elite Multifunction Diagnostic Calibrator

Compact calibrator replaces toolbox of single function devices: Milliamp_Voltage_Frequency_pH_Resistance_Thermocouples_RTDs_Check Continuity_Pressure

Loading...

Description

  • Lighten up your toolbox
    Compact calibrator replaces toolbox of single function devices
  • Technician friendly operation
    Intuitive EZ-DIAL double click menu makes it easier to setup than other multifunction calibrators. Uses the same menus as the single function PIE Evolution calibrators. Icons on the display indicate where to plug in the test leads.
  • Use it as a milliamp and voltage calibrator
    Source 0.00 to 24.00 mA, 0.00 to 10.25 VDC, -20.000 to 99.999 mV and -500.00 to 999.99 mV
    Read to 24.00 mA, 0.0 to 60.0 VDC, +/- 99.999 mV and +/- 999.99 mV
    Simulate 2 Wire transmitters
    Power up transmitters and loops with built in 24 V power supply
    Simplify HART hook ups with built in 250 ohm resistor
  • Troubleshoot Loop problems
    Quickly diagnose ground fault and current leakage with patented loop diagnostic technology(US Patent # 7,248,058)
  • Calibrate directly in temperature (°C & °F)
    The PIE 820Elite works with the instruments you use.
    Thermocouple types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P(Platinel II)
    RTD types Pt 100 Ohm (3850, 3902, 3916, 3926) & 1000 Ohm (3850)
    Copper 10 & 50 Ohm, Nickel 110 and 120 Ohm
  • Checkout flow and vibration systems
    Source & read frequency to 2000 CPM (Counts-Per-Minute), 999.99
    Hz, 9999.9 Hz, & to 20.000 kHz
  • Troubleshoot loop & wiring problems
    Beep out connections with the built-in continuity checker
  • Simulate pH probes into transmitters & analyzers
    Source from 0.000 to 14.000 pH @ 25°C (77°F) corresponding to +414.12 to -414.12 mV
  • Measure pressure with optional pressure modules
    32 modules for gauge, differential, compound and absolute pressure
  • Easy to read
    Turn on the backlight & easily see the display in dark areas of the plant
  • Quickly set any three outputs plus automatic stepping & ramping
    Easily set any value quickly with the adjustable EZ-DIAL; store any three output settings for instant recall with the EZ-CHECK switch.
    Choose between 2, 3, 5 & 11 steps to automatically increment the output in 100%, 50%, 25% or 10% of span.
    Select RAMP to smoothly increase and decrease the output between Zero and Span.
    Set step/ramp time to match your system from 5, 6, 7, 8, 10, 15, 20, 25, 30 and 60 seconds
  • Measure temperature sensors, frequency pickups, loop currents, voltage levels & pressures
    Check the values of your process sensors. Instantly recall MAX and MIN values to see process variability
  • Includes Rubber Boot, Deluxe Hands Free Carrying Case & mV/RTD Test Leads (020-0820)
