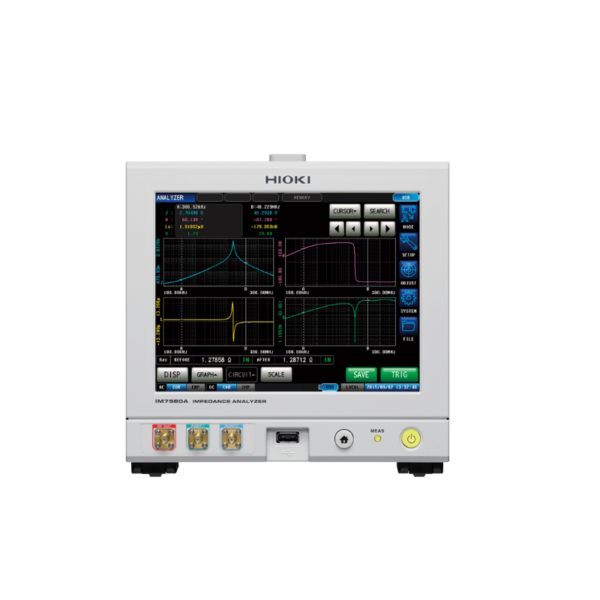

HIOKI IM7580A IMPEDANCE ANALYZER
1 MHz to 300 MHz Measurement Frequency Impedance Analyzer with 0.5 ms Test Speed and Superior Repeatability
Description
Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM7580A impedance analyzer offers a top measurement time of 0.5 ms over a 1 MHz to 300 MHz frequency, and both LCR and Analyzer Modes to meet applications for both high volume production inspections and research and development.
Features:
• 1 MHz to 300 MHz testing source frequency
• Fastest test speed of 0.5 msec
• ±0.72% rdg. basic accuracy
• Half-rack size body and palm-sized test head
• Comprehensive contact check (via DCR testing, Hi-Z reject or waveform judgment)
• Make frequency sweeps, level sweeps and time interval measurements in Analyzer Mode
