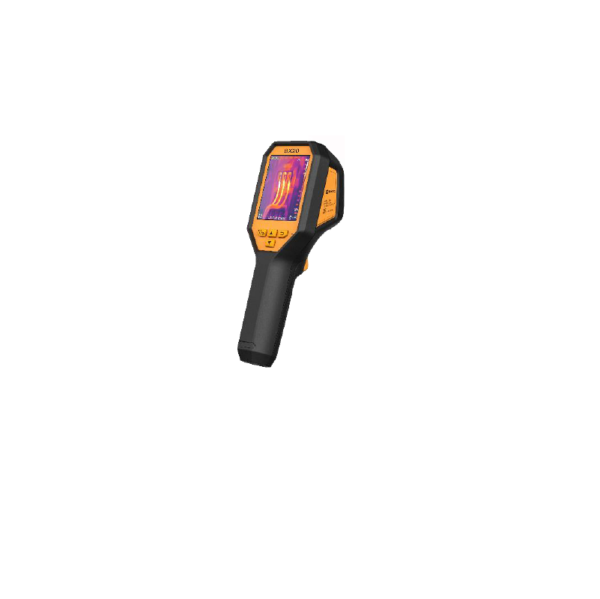

HIKMICRO BX20

Explosion-Proof Thermal Camera

Loading...

Description

HIKMICRO BX20 is certified to measure temperature in many explosive environments to quickly find invisible faults. It’s equipped with a 256 × 192 resolution thermal detector and 2 MP visual camera. The temperature ranges from -20°C to 550°C (-4°F to 1022°F), which meets the most situation. It helps the staff to quickly find the fault according to accurate temperature measurements of high-temperature targets in the environment. Meanwhile, it provides assistance in the decision and ensures safety.

Features

● ATEX: II 3 G Ex ic IIC T6 Gc
● IECEx: Ex ic IIC T6 Gc
● Thermal resolution: 256 × 192 (49,152 pixels)
● NETD: < 40 mK (@ 25°C, F#=1.0)
● Temperature measurement range : -20°C to 550°C (-4°F to 1022°F)
● Accuracy: Max. (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
● Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point
● 25 Hz image frequency
● 3.2” LCD screen display
● Up to 6 hours continuous running
